MISCELLANEOUS USED MACHINES FOR SALE BY ISMS

Machines other than Used and Rebuilt Davenports are listed below

STAR SA-12: 1 Used Machine for Sale
STAR SR-20R: 1 Used Machine for Sale
TORNOS DECO 13mm: 2 Used Machines for Sale
TORNOS MULTI DECO 26/6: 1 Used Machine for Sale
TORNOS DECO 20mm: 2 Used Machines for Sale
CITIZEN L20 VII: 3 Used Machines for Sale
CITIZEN B12: 1 Used Machine for Sale
EMCO ET425: 1 Used Machine for Sale
LOOKING FOR A SWISS MACHINE? Just drop us an email with all your contact info. We will email you with what we have to offer, & will notify you of new arrivals as we get them.

We have several other machines available in customer facilities
Call ISMS for more detailed information
MACHINES WANTED TO BUY: Please see bottom of page for specifics.

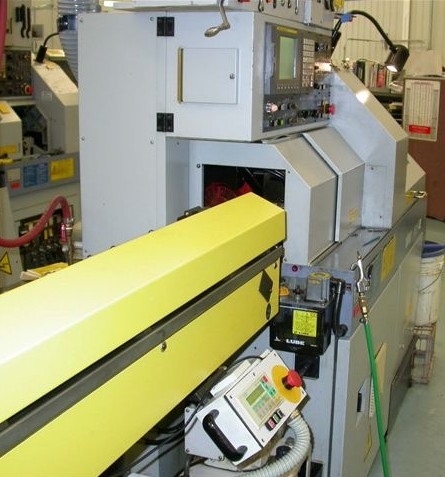

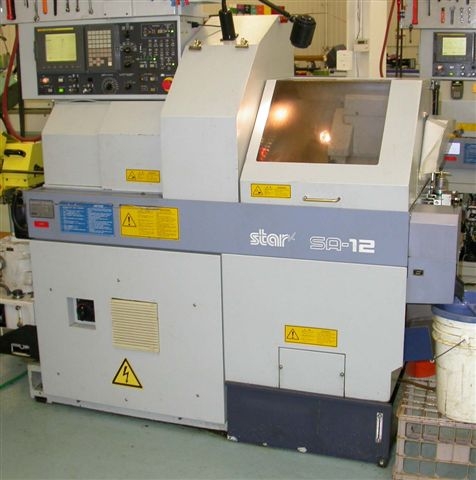

STAR SA-12 SWISS TYPE CNC LATHE (USED) - NEW 2000

GENERAL SPECIFICATIONS - STAR SA-12 CNC

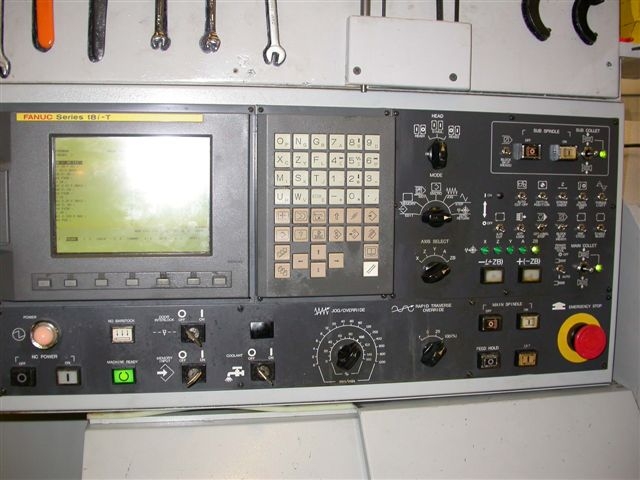

Fanuc 18iTA Control
Synchronized Revolving Guide Bushing: 13mm
Max Bar Capacity: 1/2" (Can be converted to 16mm / 5/8")
Main Spindle Speed: 500-12,000 RPM
Sub Spindle Speed: 500-8,000 RPM
Tooling: (6) OD Turn / (3) Live / (4) ID front / (4) ID sub spindle
Main Spindle Indexing: 15 degree
Broken Cut Off Tool Detector
Sub Spindle Air Blow Unit
Auto Transformer
3 Spindle Cross Drilling Attachment
Tool Nose Radius Compensation
Parts Counter
Parts Conveyor

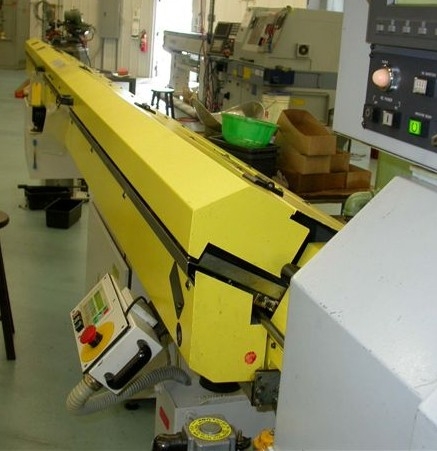

FMB Mini-Mag Magazine Bar Loader (12' bars)
All available tooling and manuals

Machine is reported to be in good condition and can be inspected under power and in production.

PLEASE EMAIL OR CALL ISMS FOR FULL QUOTE & SPECIFICATIONS. Machine subject to prior sale.

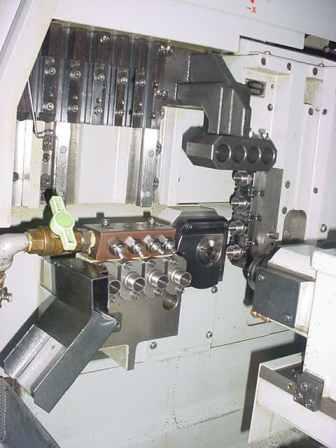

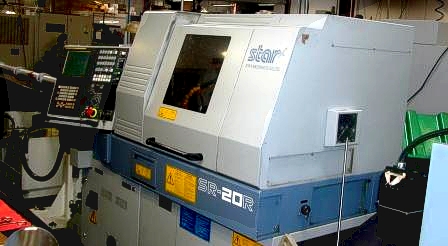

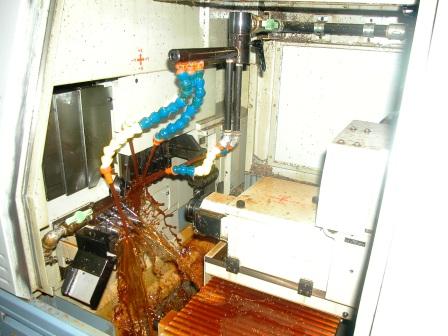

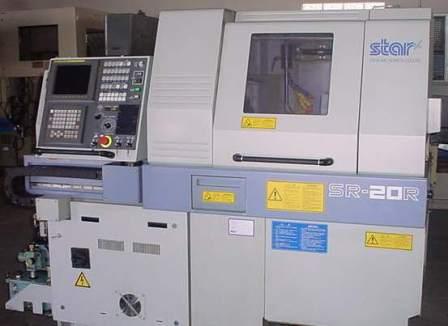

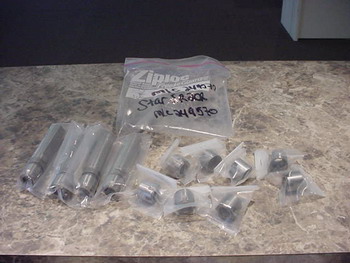

STAR SR-20R CNC SWISS TYPE WITH SLIDING HEAD STOCK LATHE - NEW 2000

GENERAL SPECIFICATIONS - STAR SR-20R CNC
CNC CONTROL:	FANUC 18iT
MAX. TURNING DIAMETER:	3/4" (25/32")
MAX. HEADSTOCK STROKE:	8"
MAX. DRILLING CAP., STATIONARY TOOL:	25/64" (10MM)
POWER-DRIVEN ATT.:	5/16" (8MM)
SPINDLE SPEED:	10,000 RPM
SPINDLE INDEXING:	.01 DEG (C-AXIS)
MAIN SPINDLE MOTOR:	3.7 KW
(18) TOOLING POSITIONS:	6 OD, 4-ID, 4 BWID, 4-ROTARY
POWER-DRIVEN ATT. SPIN. SPEED, CROSS MILL.	350 - 8,000 RPM
SUB-SPINDLE (BACK WORKING):
MAX. CHUCKING DIAMETER:	3/4" (25/32")
NO. OF TOOLS:	4 (UP TO 8 W/ 4 LIVE OPT)
SPINDLE INDEXING:	15 DEG (OPT 1 DEGREE)
MOTOR:	2.2KW
MAX. DRILLING CAPACITY (3-SPINDLE UNIT)	9/32"

EQUIPPED WITH (TO BE VERIFIED BY BUYER):

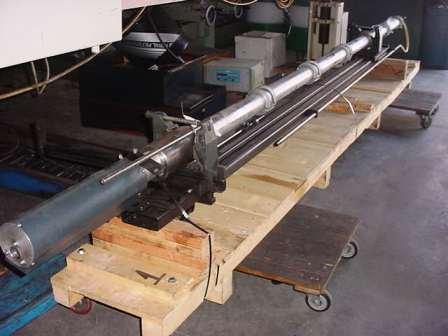

LNS SUPER HYDROBAR HYS 3.20 HS-4.8 BARFEED (3-TUBE GATLING TYPE)

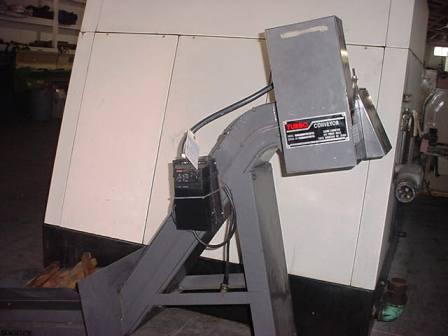

TURBO CHIP CONVEYOR (S/N 349346)
PARTS CATCHER
PARTS EJECTOR

PLEASE EMAIL OR CALL ISMS FOR FULL QUOTE & SPECIFICATIONS. Machine subject to prior sale.

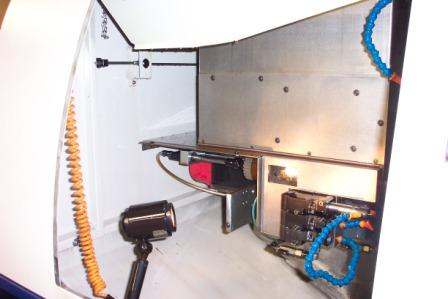

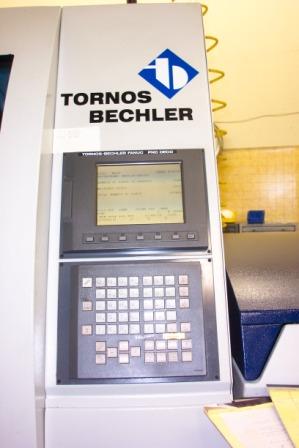

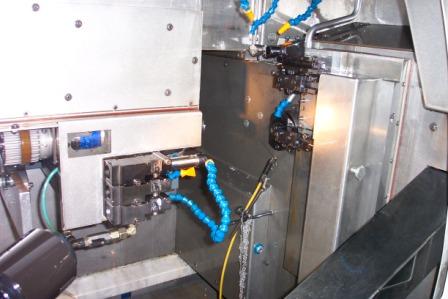

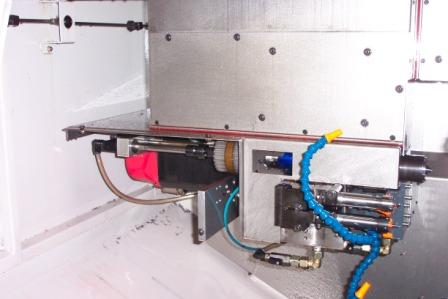

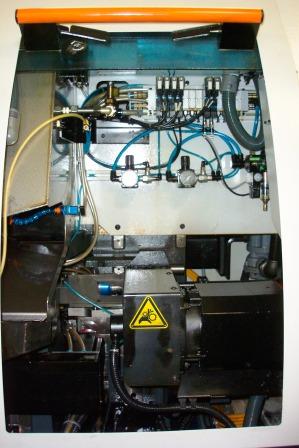

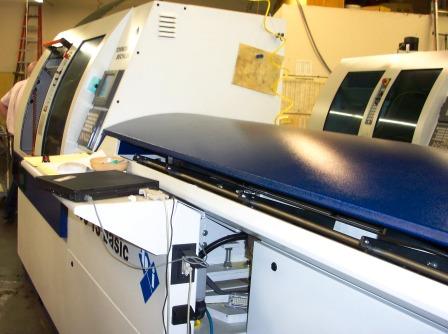

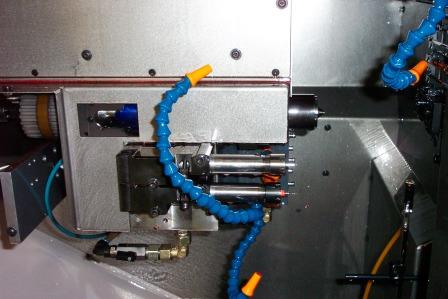

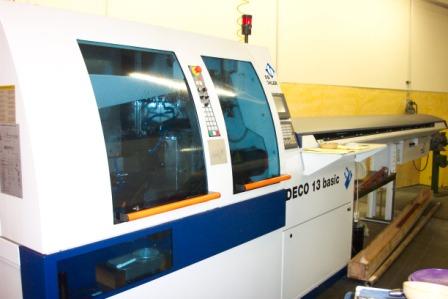

TWO (2) TORNOS DECO 13mm BASIC SWISS TYPE CNC - DELIVERED FEB. 2001 (Package Deal)

TORNOS DECO 13bi - TECHNICAL CHARACTERISTICS:
Sliding headstock (axis Z1) (+C1 optional)
Max. bar passage	ø 13 (16) mm
Length of parts - guide bush turning	160 mm
Programmable spindle rotation speed	100-12000 rpm
Positioned indexing and stop, increments	0.1 degree
Max. spindle power	2.2 (3.7) kW
Guide bush holder (X1/Y1)
Number of tools in the guide bush (fixed or turning)	5
Tool section	12 x 12 (12,7 x 12,7) mm
Number of cross millers/drillers in the guide bush	3
Programmable rotation speed	100-8000 rpm
Max. power of turning spindles	0.55 (1.1) kW
End unit and tool system with counter-spindle (X2/Y2/Z2)
Max. number of fixed end tools	3
Max. number of fixed tools for turning	3
Programmable rotation speed	100-12000 rpm
Counter spindle
Max. diameter counter-spindle clamping capacity	13 (16) mm
Programmable rotation speed	100-12000 rpm
Positioned indexing and stop, increments	0.1 degree
Max. number of back-operations	3
Number of fixed or turning spindles	3
Programmable spindle rotation speed	100-8000 rpm
Max. power of counter-spindle	1.5 (2.2) kW
PN-DECO parallel numeric control
No. of simultaneous axes	all axes
No. of interpolated axes	all axes

1 machine 3 Power Tools,

1 machine with 2 Power Tools.

Both with Full C axis

8 Axis Machine (Z1, Z2, X1, X2, Y1, Y2, C1, C2, S3 Motorization)

Spindle Stopping on Counter Spindle

Tool Presetter and Tooling

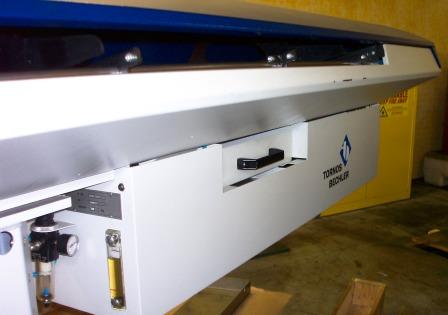

RoboBar (capacity 16mm with Bar Prep.)

Machines are in Beautiful Condition.
Can be seen under power and running parts.

2 MACHINE PACKAGE WITH TOOLING AND PRESETTER:

PLEASE EMAIL OR CALL ISMS FOR FULL QUOTE & SPECIFICATIONS. Machines subject to prior sale.

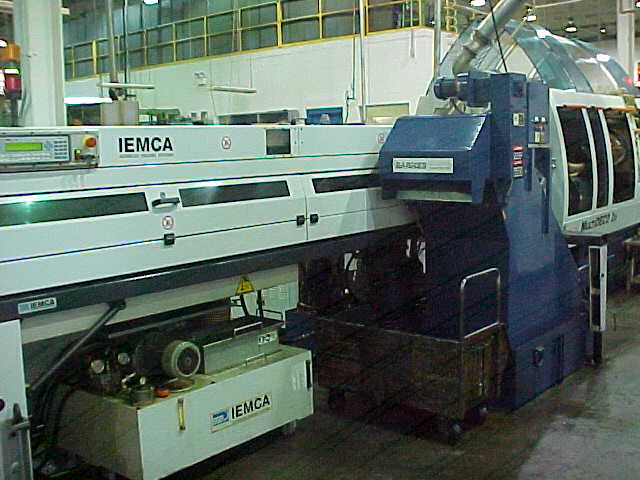

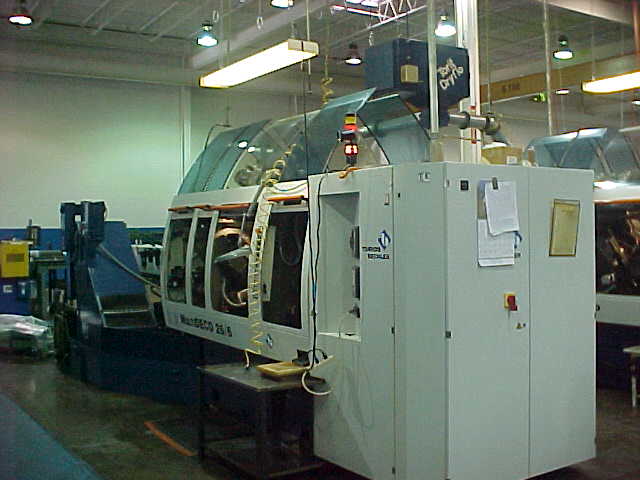

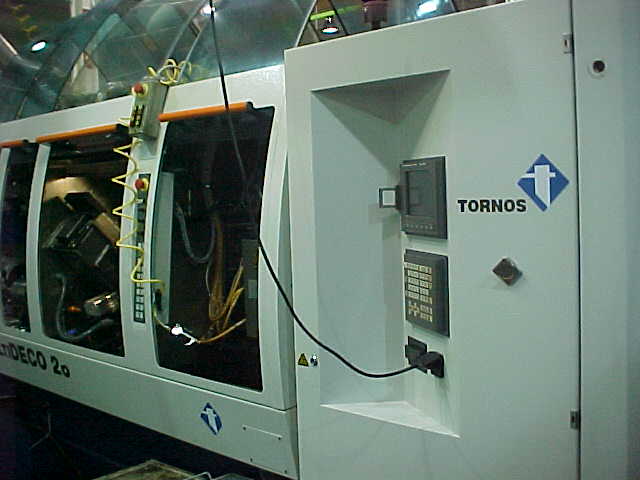

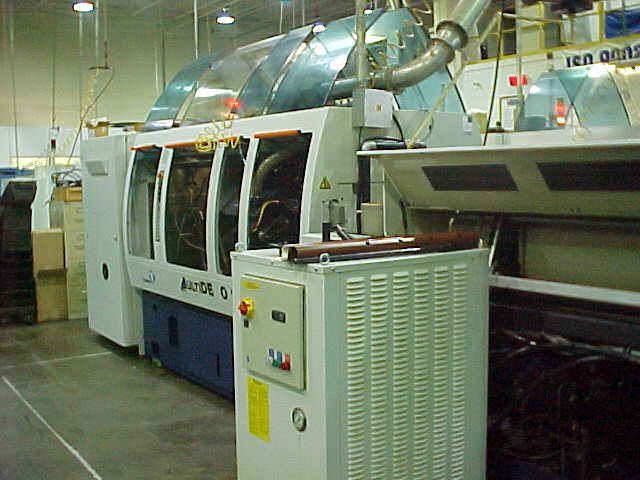

TORNOS MULTI DECO 26/6 CNC MULTI-SPINDLE SCREW MACHINE

New 2002 w/ Approx 3,000 hours
Iemca SIR-32 Bar Loader
Cross drilling, Pick Off, Back Work, High Pressure Coolant
12 - Tool Holders (2 for each position)
1 Dovetail Tool Holder
5 Live drilling spindles (Z21, Z22, Z23, Z24, Z25)
2 Fixed Holders
10 End Working Tool Holders Series, ER 32 Quick Change
5 Sets of Collets For 26/6
1/2" Round
1-3/16" Round
1-1/16" Round 15/16" Hex 7/8" Hex

Also, For Iemca SIR32 Bar Loader: All pushers and Cups, Loader Sleeves, Spindle Liners

PLEASE EMAIL OR CALL ISMS FOR FULL QUOTE & SPECIFICATIONS. Machine subject to prior sale.

TWO (2) TORNOS 20mm DECOS for sale (Package Deal)

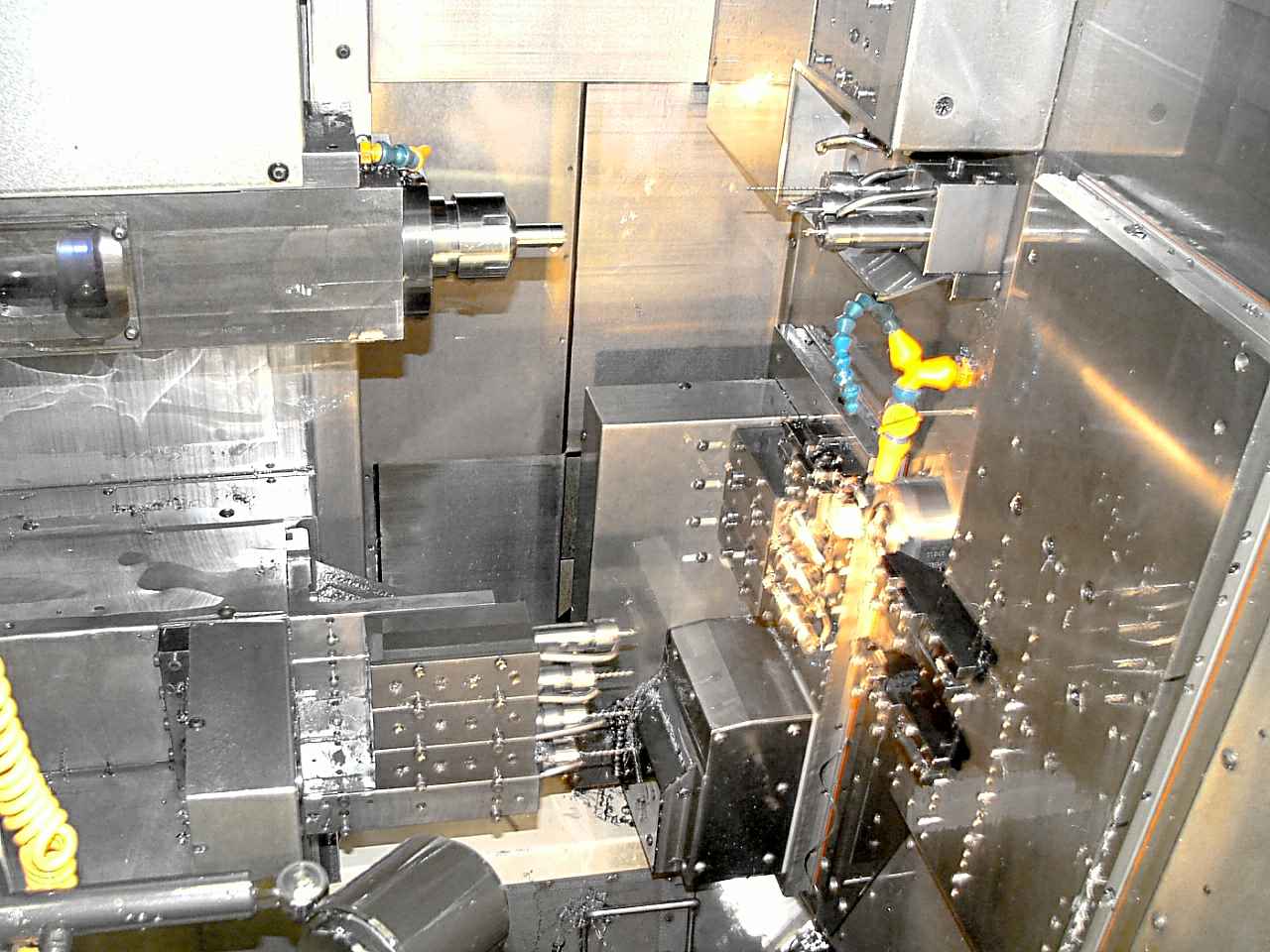

1998 20mm Deco 10axis with Robobar

16k hrs

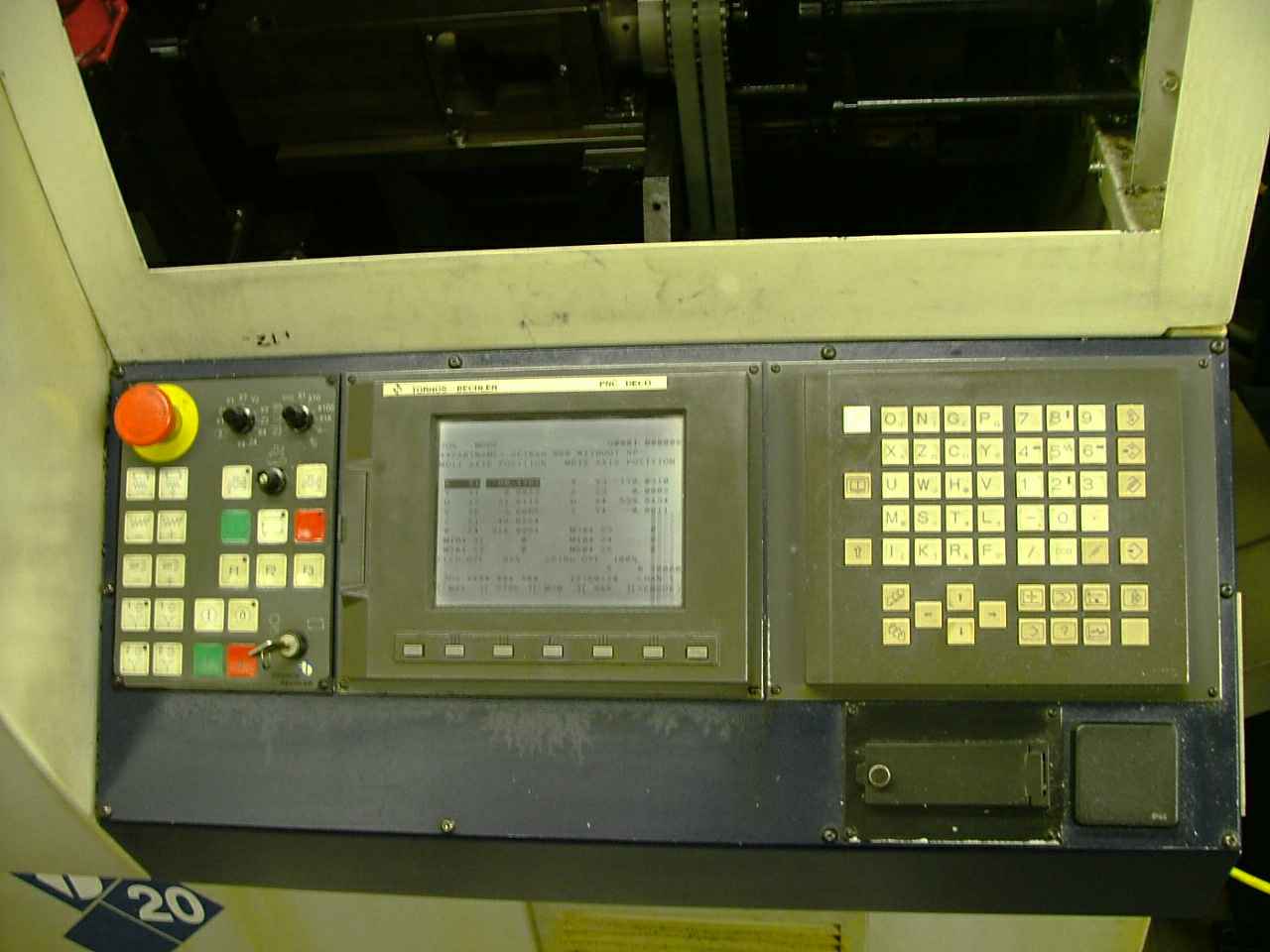

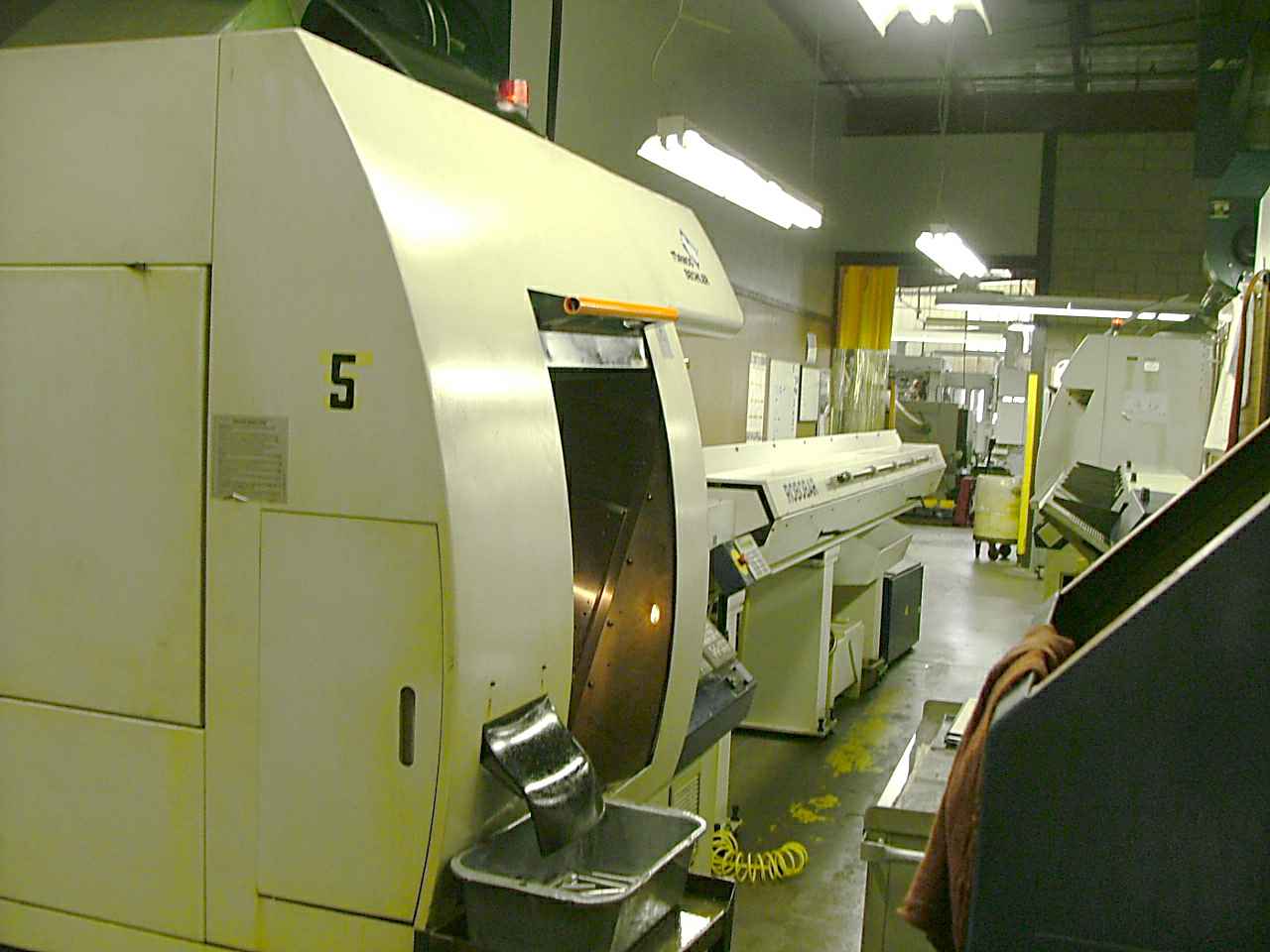

Serial number T61829
Needs a headstock spindle motor.

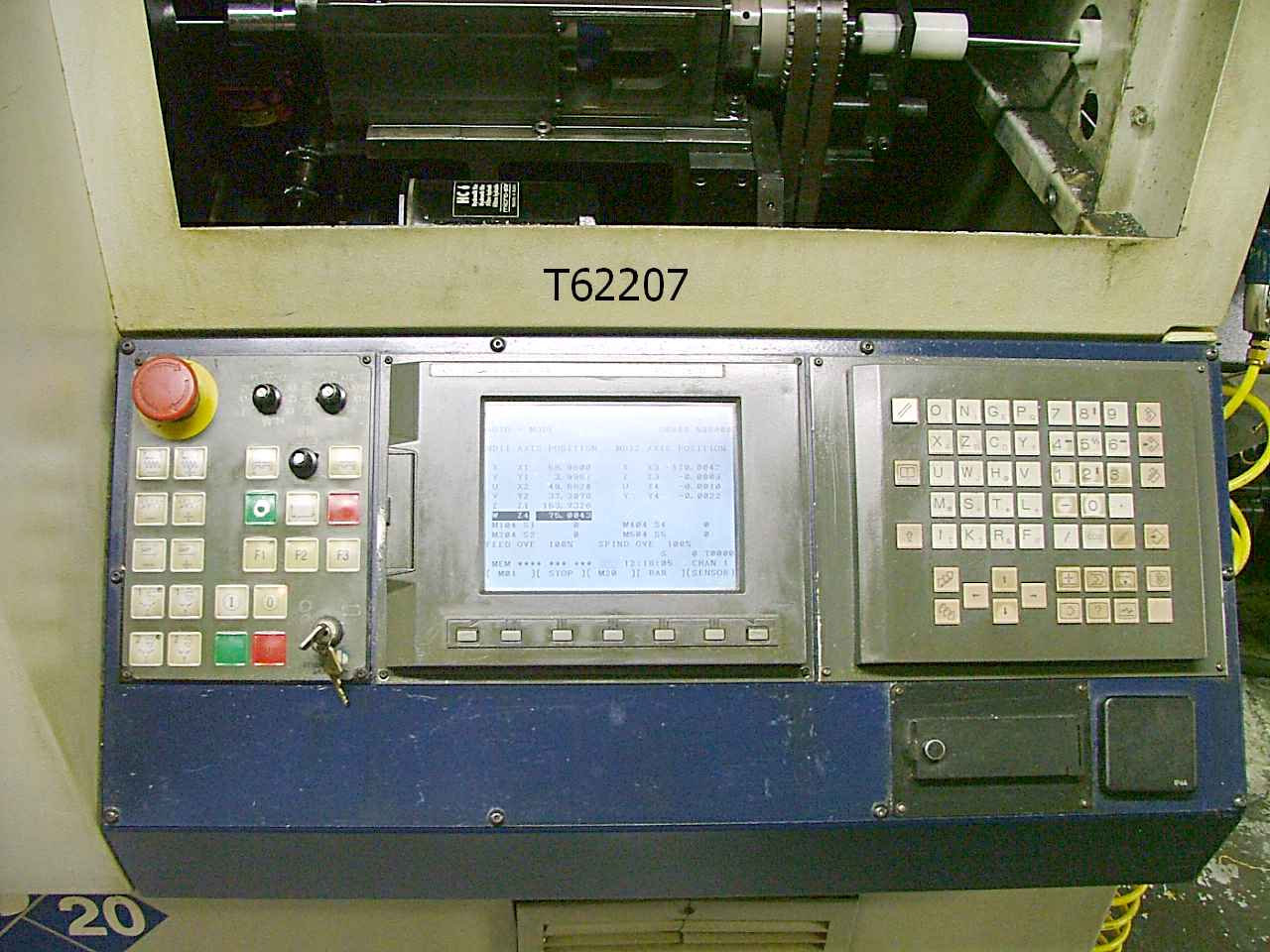

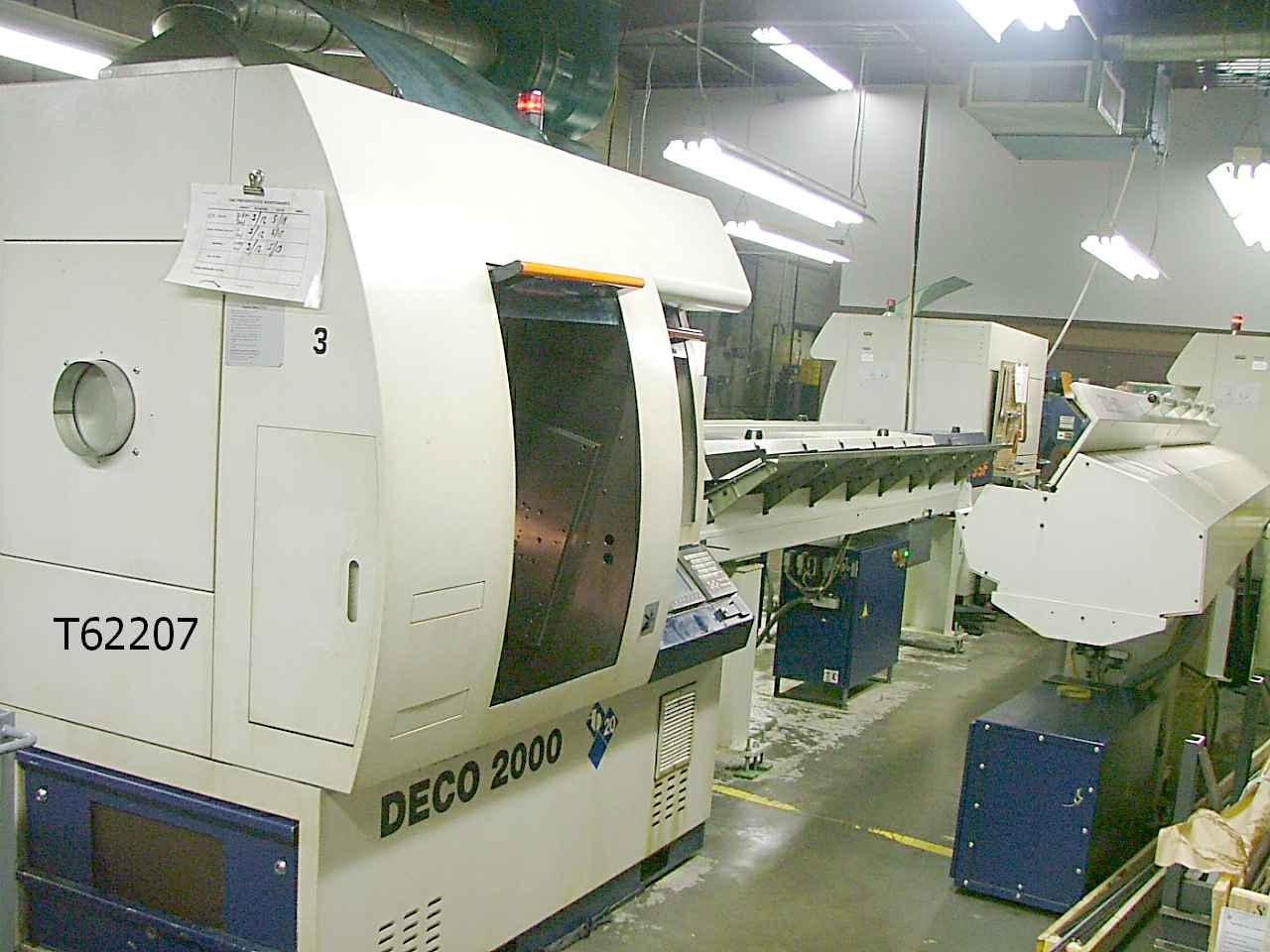

1999 20mm Deco 10axis w/robobar

14k hrs

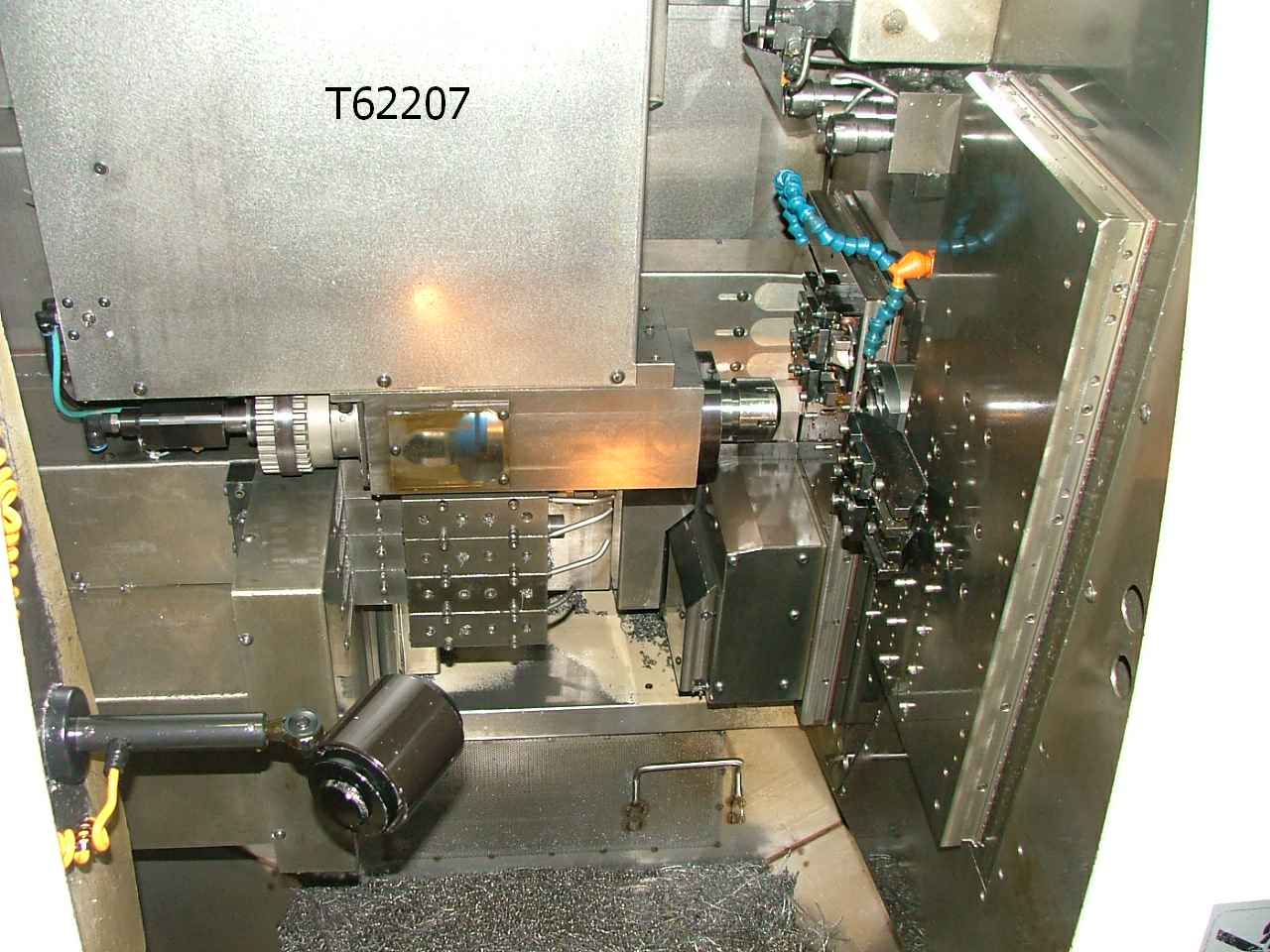

Serial number T62207
Needs a fanuc drive.

We are told (by the current owner) they both need some work.
They will come with stationary tool holders only; no power tools.
Power tools are sold separately.
Also no pre-setter.
These are great machines for someone with the capabilities of in- house repair.

Package: $150,000 USD For Both Machines

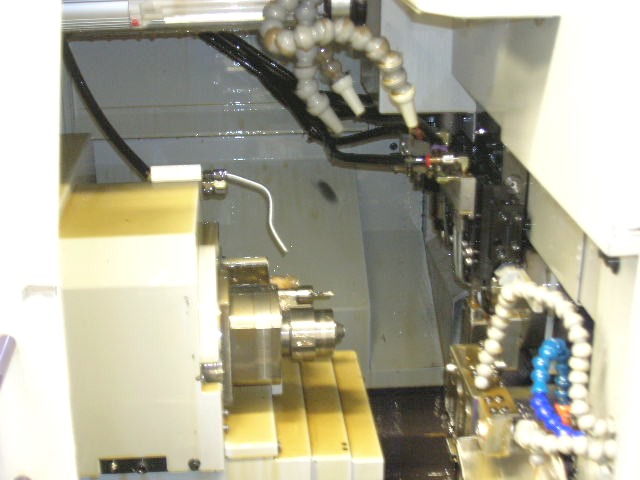

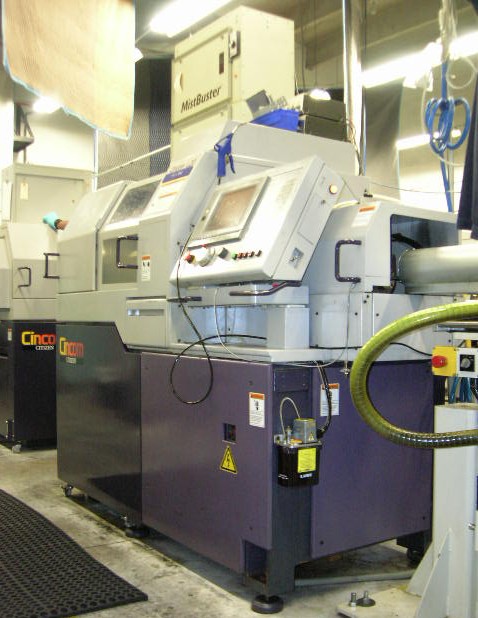

THREE (3) CITIZEN L20 VII SWISS TYPE CNC LATHES (Used) - NEW 2002

GENERAL SPECIFICATIONS

Cincom System M6 Control (Windows based)
Max Bar Stock Capacity: 3/4"
Main Spindle Speeds: 200-10,000 RPM
Sub Spindle Speeds: 200-8,000 RPM
Background Edit Function
40 Pairs of tool offsets
Canned Cycle for Threading, main
Milling Interpolation
Canned Cycles for Drilling
Main & Back Spindle Synch
Synch Tapping
Main Spindle Indexing: Full C Axis
Sub Spindle Indexing: 1 degree
Live Tools: (4)
Back Working
End Working
Thread Whirling Attachment

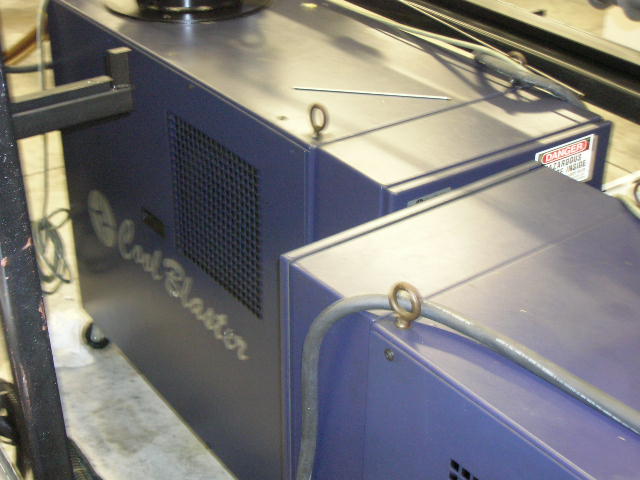

Brookdale Cool Blaster High Pressure Coolant System: 2000 PSI, (8) line
Mist Buster mist collector

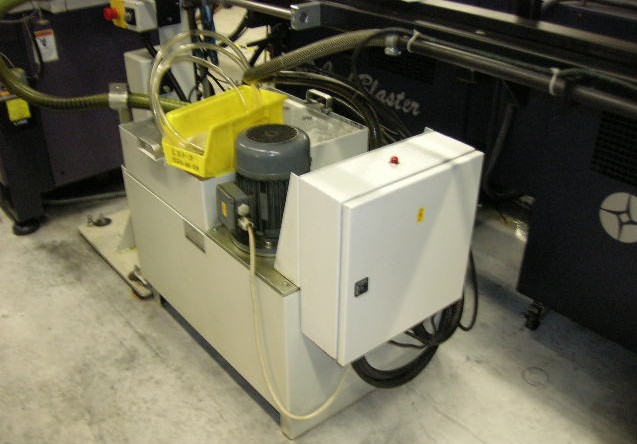

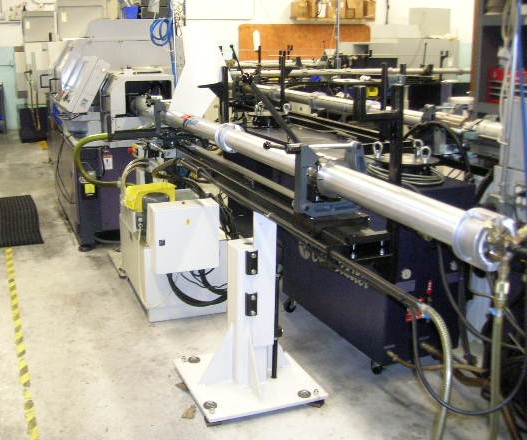

LNS Super Hydrobar HYS-3.20 HS-4.8 Hydrodynamic Bar Feed (12' bars)
All available manuals and tooling.

Machines are reported to be in very good condition and can be inspected under power.
Seller indicates machines ran approx 1 shift using oil and making bone screws.

PLEASE EMAIL OR CALL ISMS FOR FULL QUOTE & SPECIFICATIONS. Machine subject to prior sale.

LNS Mini Sprint S5 Magazine Bar Loader New 1998 - (9) guide channel sets 8mm-26mm, 12' bar length, used on a Citizen: Available at additional cost.

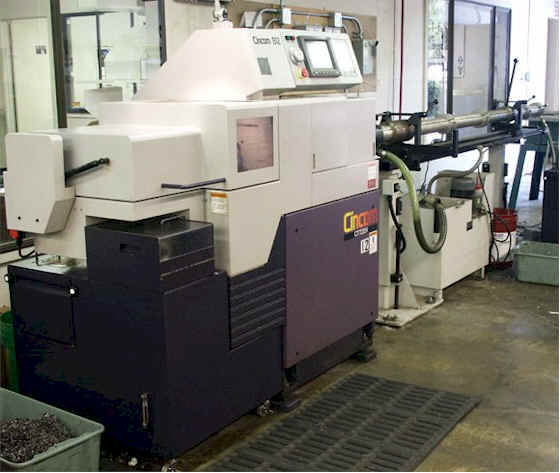

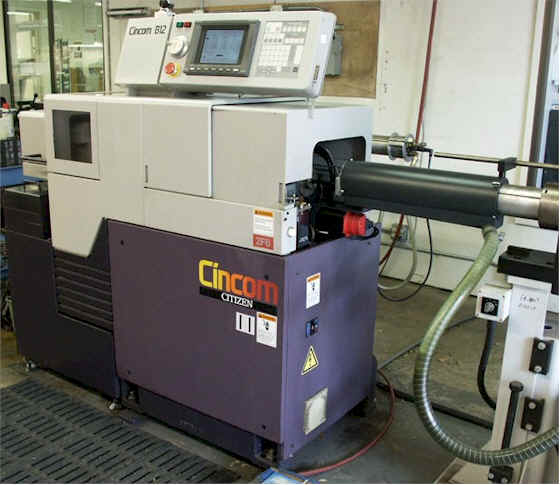

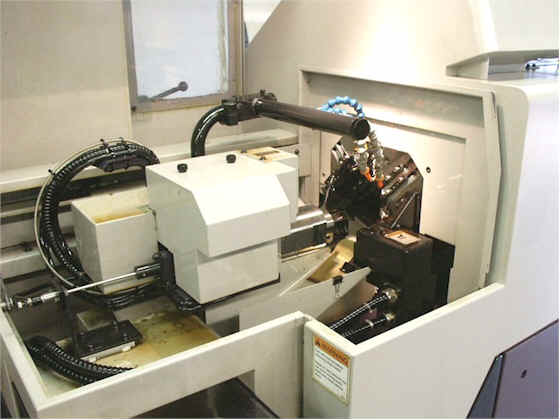

CITIZEN B12 (2F6) Type VI CNC Swiss Type Lathe w/ Fanuc 18TC Control, Sub Spindle & Live Tools; Used

General Specifications - Must be verified by buyer:

Max. Diameter Bar Capacity	1/2” (12mm)
Max. Diameter Bar Capacity	.236” (6mm)
Max. Drilling Diameter, Sub	.118” (3mm)
Max. Machining Length	2.8” (71mm) Synchronized
	5.3” (134mm) Unsynchronized
Main Spindle Motor	3 HP AC
Sub Spindle Motor	.6 HP AC
Main Spindle Speed	100 - 12,000 RPM
Sub Spindle Speed	100 - 7,000 RPM
Tool Positions:	5 Turning (3/8” square shank)
	3 ID Front (3/4” round shank)
	3 ID Back(3/4” round shank)
	2 Live
Live Tool Spindle Motor	.26 HP
Live Tool Spindle Speed	100 – 4,500 RPM
Live Tool Max. Drilling Diameter	.118” (3mm)
Main Spindle Bore	551” (14mm)
Collet Type, Main & Sub	TF16
Guide Bushing Type	SD125R
Machine Dimensions (L x W x H)	46” x 31” x 61”
Approx. Machine Weight	2,900 lbs.

New 1999
Put in service in January 2000
Machine is in very good condition
Can be inspected under power, in production with the original owner

Seller reports machine has run mostly stainless steel with approx. 6,000 hours of use (1 shift)
Equipped with
- LNS Super Hydrobar HYS-3.12 HS-3.3 (Max Bar Length 10')
- All Available Manuals, Parts, Accessories, & Tooling

PRICE: $59,000.00 US FOB

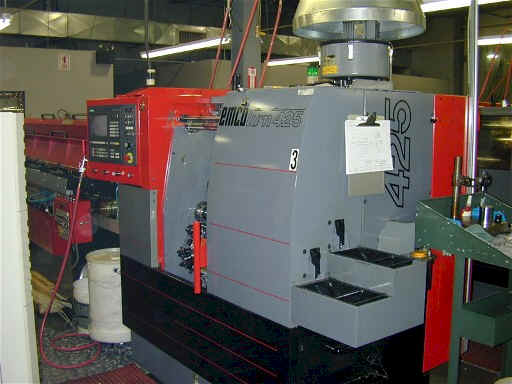

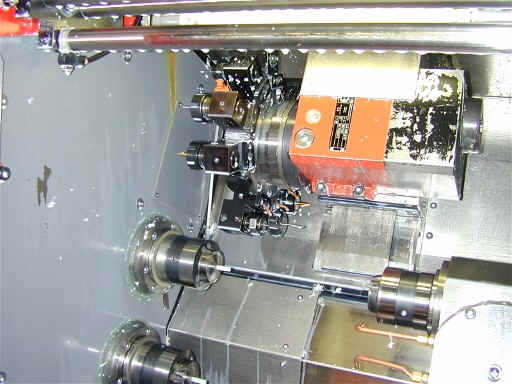

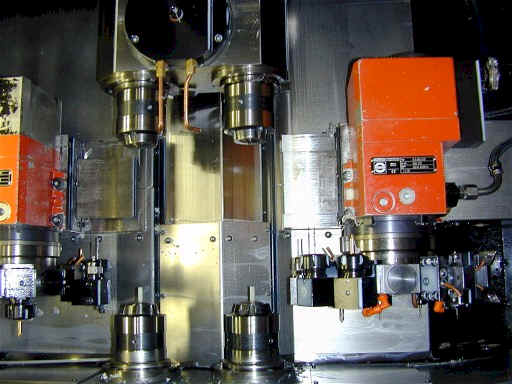

1991 EMCO ET425 Twin Spindle, Twin Turret; Used

This machine was used in tool shows until 1998 and bought as Demo.
Low Hours for year
PCP Program on Floppy Disc should re-loading of the Hard Drive be needed
Pneumatic Ejection Devices and is set-up for use with DNC Scanner

Includes FMB dual bar loader & more (see below)
S/N R1AG1005

PRICE: $49,000.00 US FOB

EMCO ET425 Also Includes:

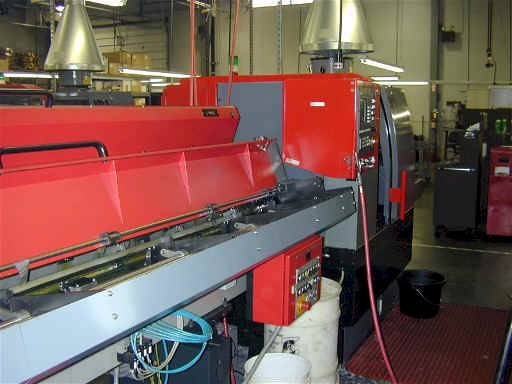

FMB Doppelturbo 3800 Barloader S/N 27-000-281 with guidance for steady rests
Mayfran Chip Conveyor S/N 97M5114-1
Transformer to regulate Voltage
4 ea. 5-C Collet Chucks
6 ea. 431-060 VDI Left Tool Holders
6 ea. 431-070 VDI Right Tool Holders
2 ea. 431-140 VDI M4 Double Tool Holders
2 ea. 431-080 VDI M4 Cut-Off Holders Equipped with Kennametal A2BNSN26J01 Cut-Off Blade

MACHINES WANTED TO BUY: LATE MODEL SWISS CNC SLIDING HEAD STOCK MACHINES
STAR SWISS STYLE CNC - Sliding headstock machines. MODELS WANTED: SR32, SV-32JII, SV-32, SR-20, SR-20R, SR-16, SR-16R, SA-16,SH-16 SH-12, SA-12 AND ALL OTHER MODELS.	TORNOS DECO SWISS STYLE - Sliding headstock machines. MODELS WANTED: 7MM DECO, 10MM DECO, 13MM - 16MM DECO, 20MM - 25MM DECO, 26MM - 32MM DECO
CITIZEN SWISS STYLE CNC - Sliding headstock machines. MODELS WANTED: C32, L-32, E32, M-32, L-20, M20, C16, M16, B12, M12 AND ALL OTHER MODELS.	TSUGAMI SWISS STYLE CNC - Sliding headstock machines. MODELS WANTED: BS-12 to BS-26mm, or BO -12 to BO-26mm AND ALL OTHER MODELS.
