Genesee Manufacturing can help you increase productivity and cut manufacturing
costs. Genesee
offers a complete line of adjustable, inserted blade hollow mills in a wide
variety of styles and sizes, as well as tube deburring tools and special
production tooling.
These include our new
GEN-DEX® tools, the first uniformly
adjustable, positive rake, indexable insert hollow mills. We also offer the
unique INDI-SQUARE Squareness Measuring Systems that rapidly indicate
squareness and straightness with a minimum of effort and a maximum of
accuracy.
Genesee production
tools can be successfully used to machine any material - such as steel,
malleable iron, aluminum, brass, bronze, cast iron and others - on just
about any machine tool, old or new, from automatics to CNC
machining centers.
View Genesee
catalog pages or Contact ISMS for more
information on Genesee tools. |
|
Patented
GEN-DEX® indexable hollow mills boost productivity and decrease set-up
time.
View
Genesee's catalog
page for GEN-DEX Specifications.
The first uniformly adjustable, positive
rake, indexable insert hollow mill enables you to hollow mill from the end
of the part with multiple indexable inserts.
- Combines standard ISO inserts in
precision, match ground, uniformly adjustable insert holders for hollow
milling both ferrous and non-ferrous materials.
- Tools have ¼" range of adjustability
for 1/8" to 2" diameters.
- A unique combination of toolholder
geometry and insert geometry produces constant axial and radial rake and
constant clearance angles through the entire range of diameter
adjustment.
- All tools have at least three, and, in
larger sizes, as many as five inserts hollow milling for maximum
productivity.
- Tools are standard with straight shanks
for use with toolholders in CNC machining centers, lathes and screw
machines or in conventional turning, milling or automatic screw
machines.
- All tool bodies are precision hardened and
ground for years of dependable use.
- Special tools, shanks, toolholders quoted
on application.

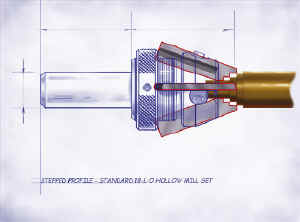

Standard Adjustable Hollow Mills
Standard Genesee Adjustable Inserted Blade
Hollow Mills are detailed in this section - both positive rake and neutral
rake. The smallest hollow mills produce diameters from 0" to 1/8"
and the largest, diameters from 1-7/8" to 2".
GEN-DEX® Inserts
Genesee's large selection of precision ground
GEN-DEX® inserts, either with or without positive raised island
chipbreakers, provide the distinct advantage of the “C” tolerance on I.C.
and thickness. This feature, normally available only by special order,
contributes to optimum, balanced cutting of the hollow mill. Customers who
choose to use our inserts will find they are able to hold +/-.001” or
better on moderate to finishing cuts, with no additional adjustment of the
hollow mill required after indexing.
|
